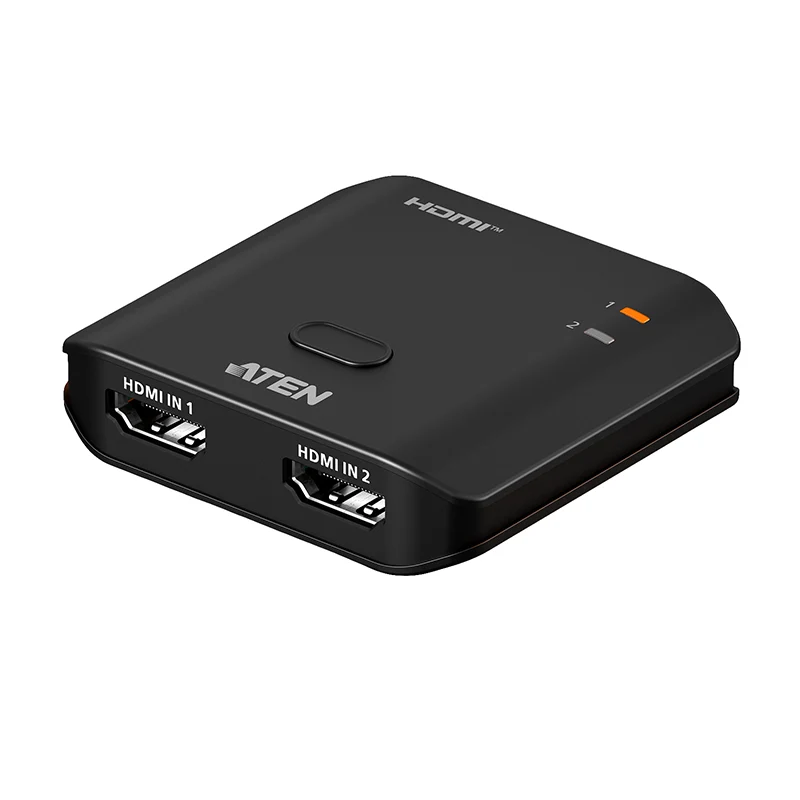

Aten VS5821 Essentials 2-Port 8K HDMI Switch (VS5821-AT)

VIDEO INPUT

Interfaces

2 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

1.5m at 7680x4320 @ 60Hz (4:2:0)

VIDEO OUTPUT

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

1.5m at 7680x4320 @ 60Hz (4:2:0)

VIDEO

Max. Data Rate

48 Gbps

Compliance

HDMI (3D, Deep Color, 8K)
HDCP 2.3 Compatible

Max. Resolution

7680x4320 @ 60Hz (4:2:0)

AUDIO

Input

2 x HDMI Type A Female (Black)

Output

1 x HDMI Type A Female (Black)

LEDS

Selected

2 x Port Selector (Orange)

Power

2 (Orange, Bottom Side)

CONNECTORS

Power

1 x USB-C (5V/1A)

CABLE LENGTH

USB Cable

1 x USB Type-C to Type-A (1m)

ENVIRONMENTAL

Operating Temperature

0-40 °C

Storage Temperature

-20 - 60 °C

Humidity

0 - 80% RH, Non-Condensing

PHYSICAL PROPERTIES

Housing

PC

Weight

0.03 kg ( 0.07 lb )

Dimensions (L x W x H)

6.10 x 5.65 x 1.52 cm
(2.4 x 2.22 x 0.6 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
