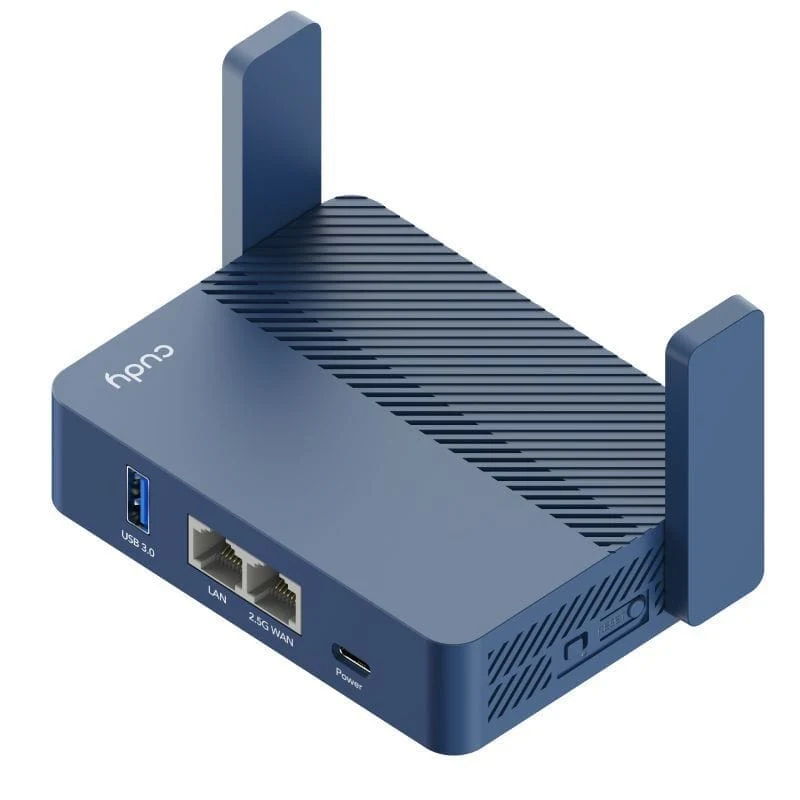

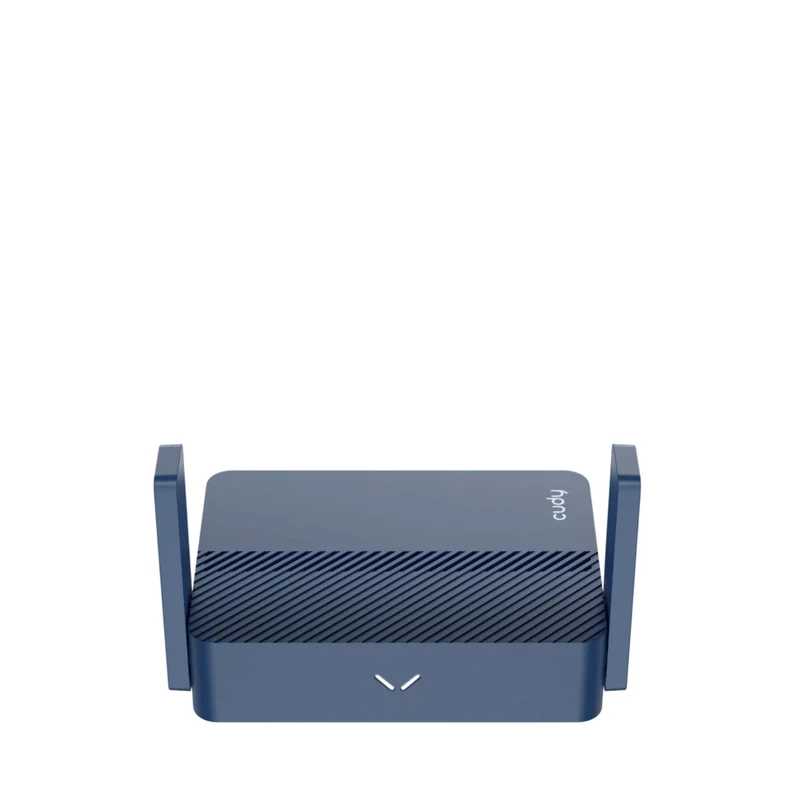

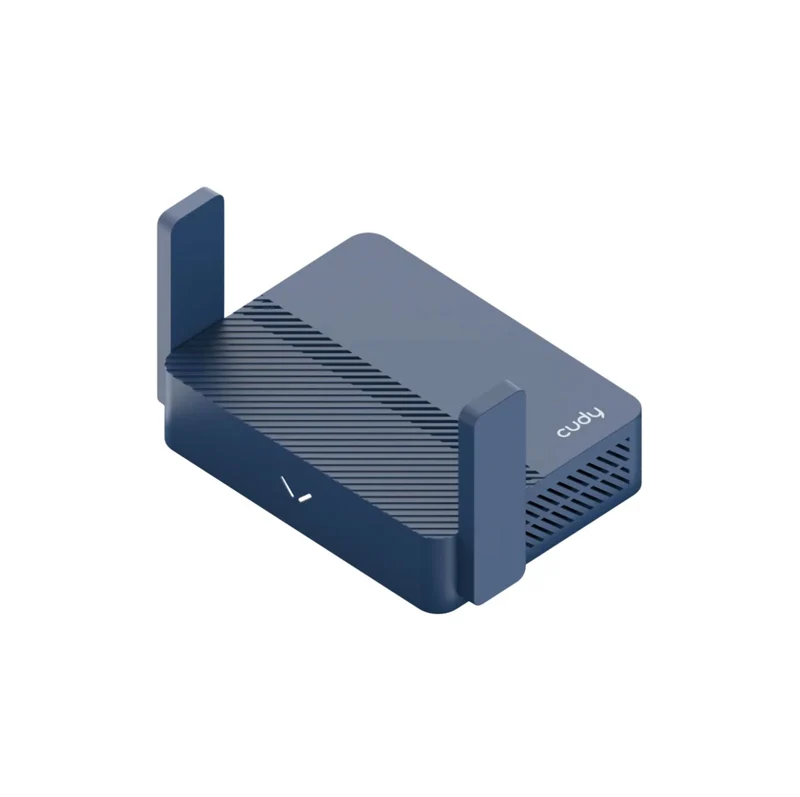

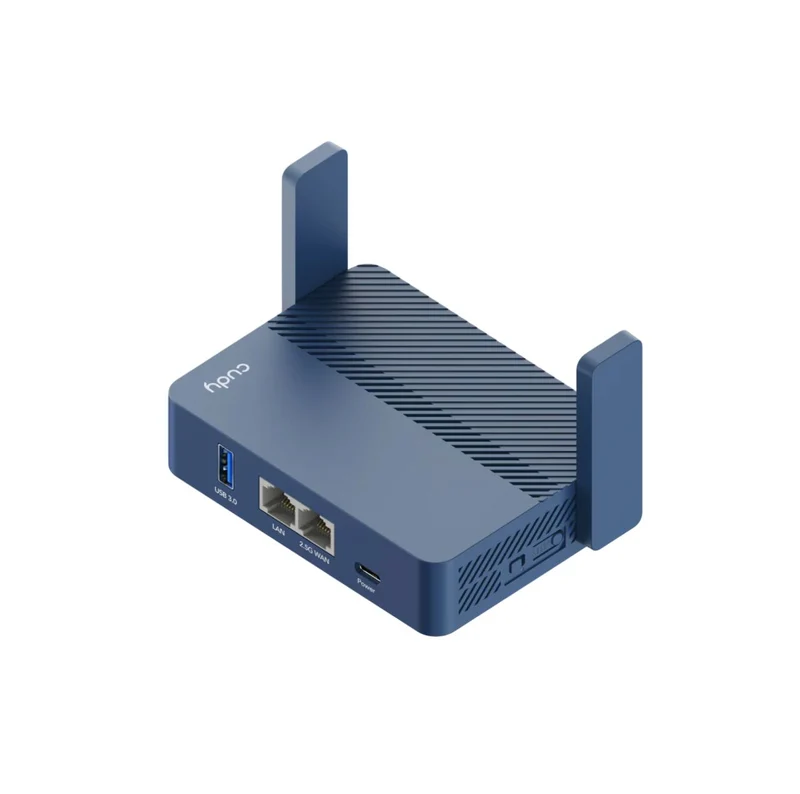

Cudy WiFi Router AX3000 2.5G Wi-Fi 6 Mini VPN Router TR3000 1.0

The Cudy AX3000 2.5G Wi-Fi 6 Mini VPN Router TR3000 1.0 offers advanced wireless connectivity with Wi-Fi 6 technology and a 2.5Gbps wired port for superior speeds. Powered via USB-C, this compact router enables secure VPN connections to your office, supports sharing of paid WiFi, and can host a file server. Its versatile design suits professionals seeking reliable, encrypted networking in a portable form factor.

The Cudy AX3000 2.5G Wi-Fi 6 Mini VPN Router TR3000 1.0 features a 1.3 GHz dual-core CPU and delivers dual-band Wi-Fi 6 with up to 2402 Mbps on the 5GHz band and 574 Mbps on 2.4GHz. It includes a 2.5GbE port and a GbE port for high-speed wired connections, plus a USB 3.0 port for versatile peripheral support. Powered via USB-C and weighing just 160 grams, this compact router supports Cudy Mesh systems, VPN server/client functionality, and cloud control via the Cudy app, providing expert-level secure and flexible networking solutions.

The Cudy AX3000 2.5G Wi-Fi 6 Mini VPN Router TR3000 1.0 is a compact, powerful solution designed for secure networking on the go. With a 1.3 GHz dual-core CPU, dual 2.5GbE and GbE ports, and USB 3.0 support, it excels at sharing paid WiFi on cruise ships, connecting securely to office networks via WireGuard, OpenVPN, or ZeroTier, and hosting NAS systems. Weighing only 160 grams and powered via USB-C, this router offers a versatile mini gateway for advanced, reliable network management wherever needed.

Specifications:

1.3 GHz Dual-Core CPU

4-Stream Dual-Band Wi-Fi 6

2402 Mbps + 574 Mbps Wi-Fi

1× 2.5GbE and 1× GbE

1× USB 3.0 Port

Powering via USB-C

160 g (5.64 oz.)

Cudy Mesh, VPN Server and Client

Cudy App, Cloud Control

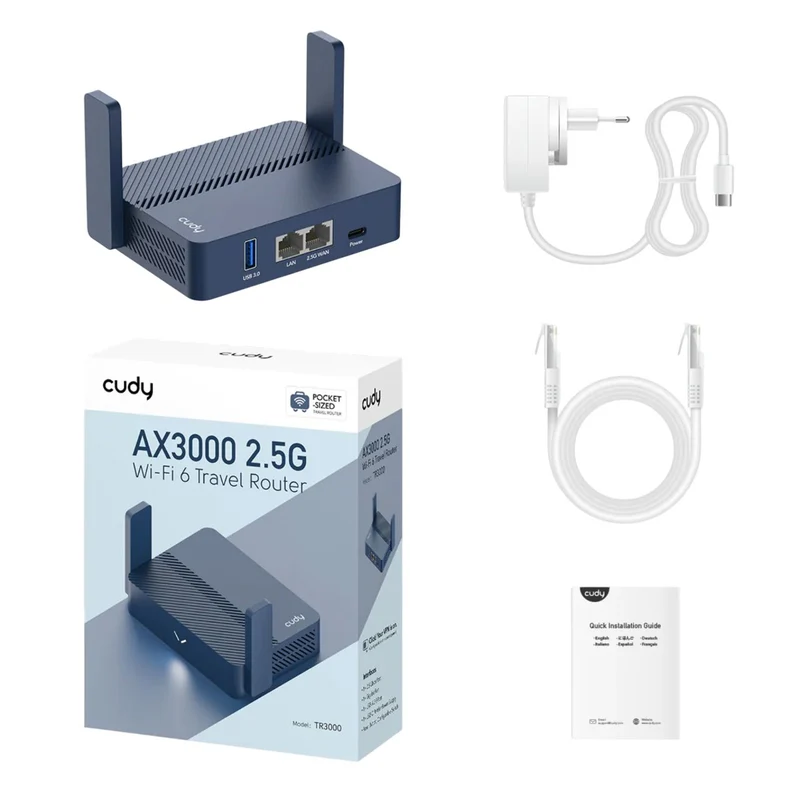

In Box: TR3000, Power Adapter,  Ethernet Cable, Installation Guide

Chipset: MT7981

CPU Details: 1.3 GHz Dual-Core, ARM Cortex-A53

Flash/ROM: 128 MB (1 Gbit) NAND

DDR/RAM: 512 MB (4 Gbit) DDR3

5 GHz Wi-Fi Speed: 2402 Mbps

2.4 GHz Wi-Fi Speed: 574 Mbps

5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) with an extra stream

2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)

Wi-Fi Antennas: 4x Fixed

5 GHz Antenna Gain Max: 4.8dBi

2.4 GHz Antenna Gain Max: 3.9dBi

FEM or PA/LNA: 5 GHz: 3× Internal 2.4 GHz: 2× Internal

Beamforming: True

Range Performance: Max: 180 m (787 ft) Indoor WiFi range varies depending on the layout and wall materials

Wall Performance: Two wooden walls with thickness <10 cm (4'') One concrete wall with thickness<20 cm (7'') or two concrete walls with thickness<10 cm (4'')
