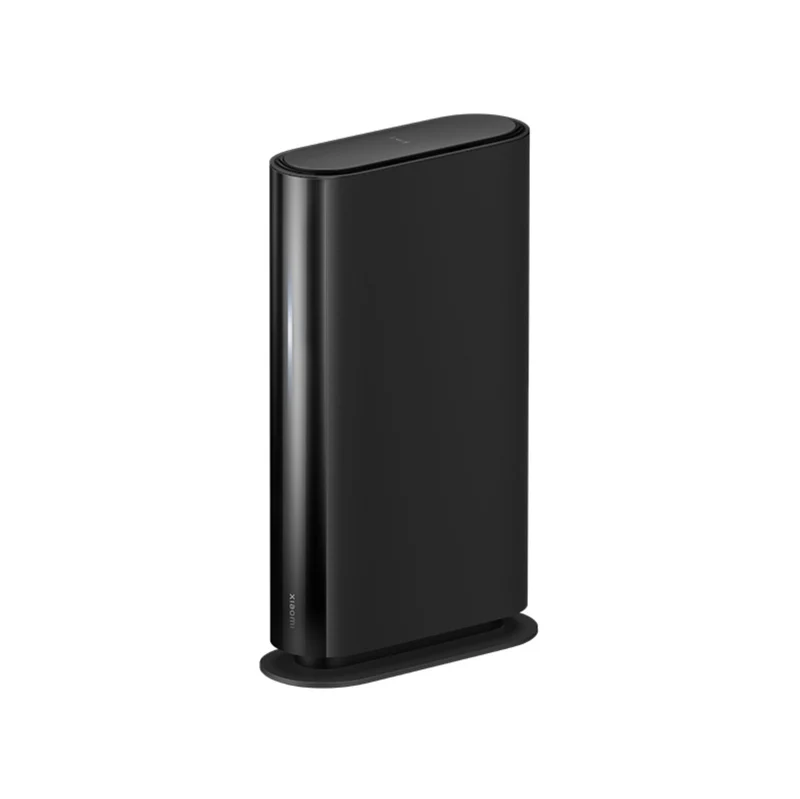

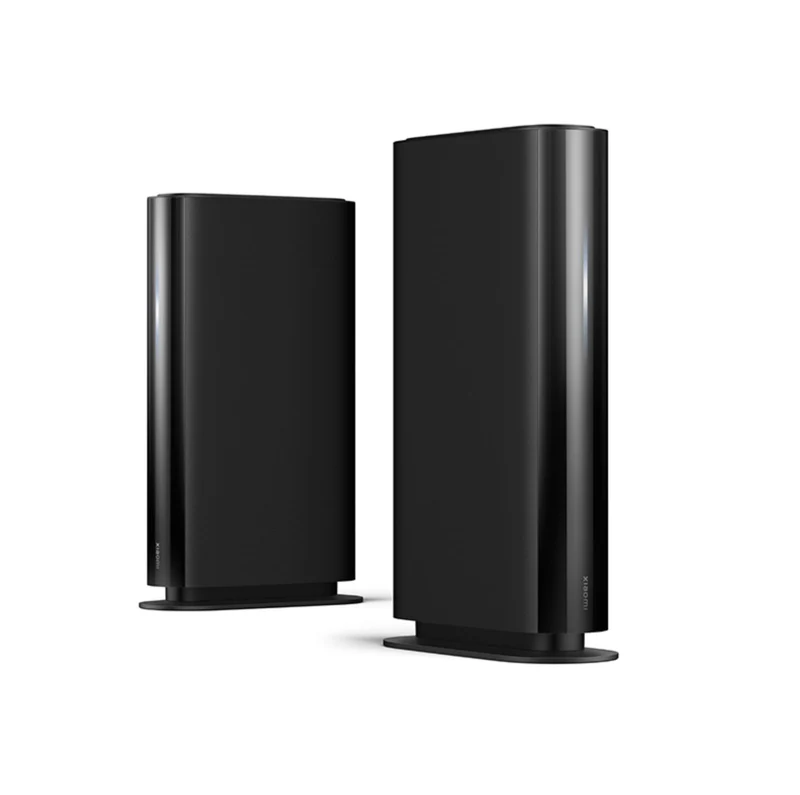

Xiaomi HomeWiFi Tri-band Mesh Router

Experience seamless whole-home connectivity with the Xiaomi HomeWiFi Tri-band Mesh Router. Featuring tri-band technology across 2.4GHz, 5.2GHz, and 5.8GHz frequencies, this router delivers speeds up to 2882Mbps on the dedicated 5.8GHz backhaul band. Powered by Qualcomm IPQ5018 processor and 512MB memory, it supports the latest IEEE 802.11ax protocol for ultra-fast wireless performance. The router includes six intelligent antennas—four single-band, two dual-band, plus Bluetooth and NFC antennas—for comprehensive coverage and connectivity. Three 10/100/1000M ports and one 2500M port provide flexible wired connections, while natural heat dissipation ensures reliable operation. Advanced security features include WPA3-SAE encryption, access control, and anti-hacking protection. Manage your network effortlessly through the MiWiFi ROM operating system with Web, Android, and iOS app support. Enjoy family internet protection, guest Wi-Fi, QoS speed limiting, game acceleration, and Wi-Fi optimization. The sleek dark gunmetal design measures 56mm × 137mm × 229.6mm, making it a stylish addition to any home. Backed by a one-year warranty and designed for operating temperatures from 0-40°C.

Specifications:

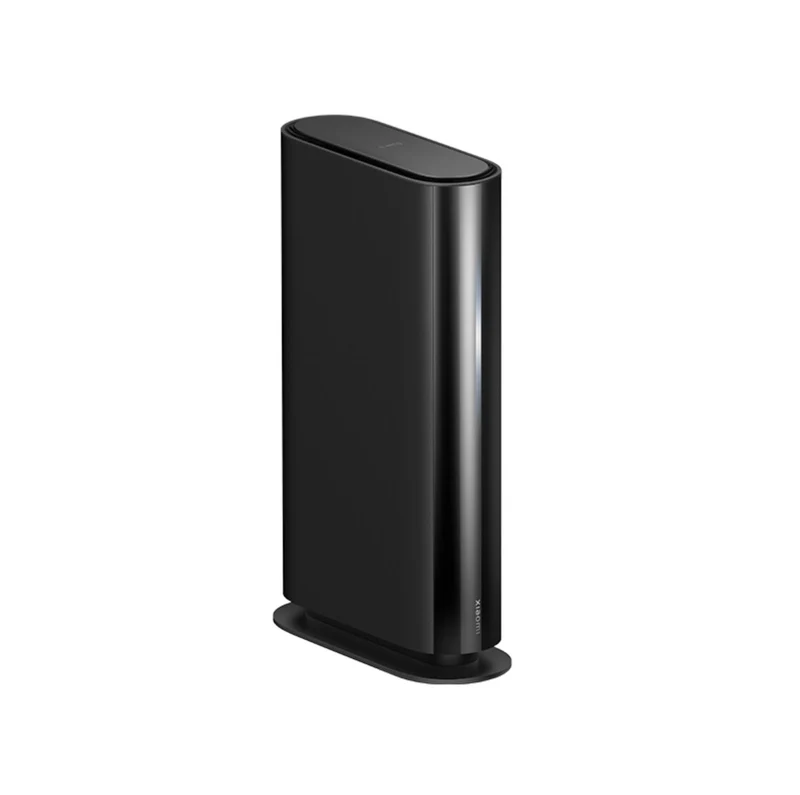

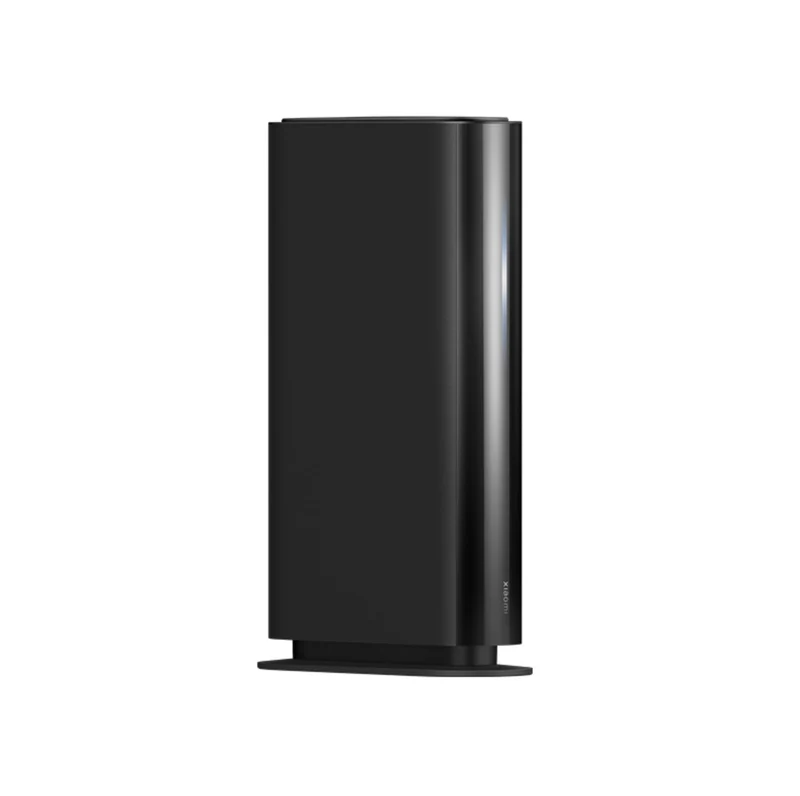

Length, width, and height: 56mm x 137mm x 229.6mm

Product Color: Dark gunmetal

Hardware configuration

Processor: Qualcomm IPQ5018

Memory: 512MB

2.4G Wi-Fi2×2 (supports up to IEEE 802.11ax protocol, theoretical maximum speed up to 574Mbps)

5.2G Wi-Fi2×2 (Supports up to IEEE 802.11ax protocol, theoretical maximum speed up to 2402Mbps)

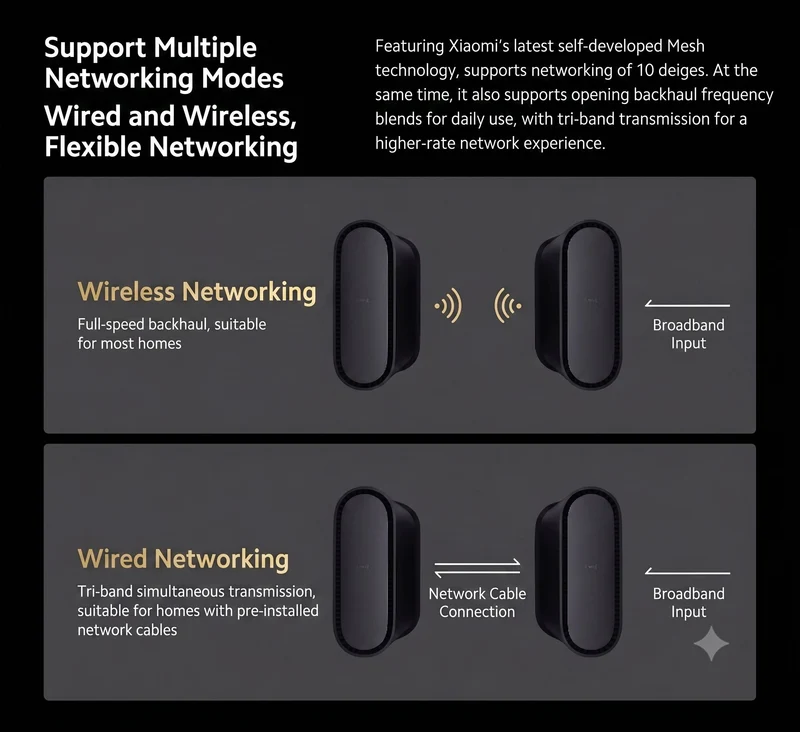

5.8G Wi-Fi4x4 (Dedicated backhaul band for Mesh, supporting up to IEEE 802.11ax protocol and 4K QAM,
with a theoretical maximum speed of 2882Mbps)

Product Antenna: Built-in antennas (4 single-band Wi-Fi antennas + 2 dual-band Wi-Fi antennas + 1 Bluetooth antenna + 1 NFC antenna)
Product heat dissipation: Natural heat dissipation

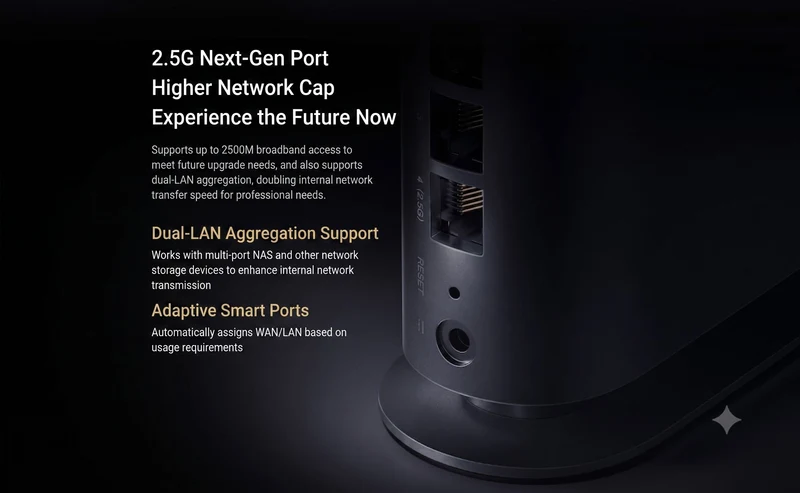

All interfaces: Three 10/100/1000M auto-sensing WAN/LAN ports, and one 10/100/1000
2500M auto-sensing WAN/LAN port.
Indicator lights: 1
System reset button:  1
Power input interface: 1
Mesh button: 1
Protocol Standard: IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab/3bz
Certification Standards: GB/T 9254.1-2021, GB4943.1-2022
Wireless parameters
Tri-band: 2.4GHz, 5.2GHz, 5.8GHz
Wireless channel: 2.4GHz Channels: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11,
12, 13 5.2GHz Channels: 36, 40, 44, 48, 52, 56, 60,
64 5.8GHz Channels: 149, 153, 157, 161, 165
Software parameters
Operating system: MiWiFi ROM, a smart router operating system deeply customized based on OpenWrt.
Wireless security: WPA-PSK/WPA2-PSK/WPA3-SAE encryption,
wireless access control (blacklist/whitelist), SSID hiding, and intelligent anti-hacking features.
Special features: Family internet protection, Bluetooth Mesh gateway, NFC tap-to-connect, Wi-Fi timer switch, guest Wi-Fi, QoS speed limiting, Wi-Fi optimization, game acceleration, IPTV, LAN port aggregation
Management Applications: Supports Web, Android, and iOS
Product accessories
Instruction manual: 1
Product power supply: 2
Network cable: 1 piece
Work environment
Operating ambient temperature: 0-40℃
Operating humidity: 10%-90%RH (non-condensing)
Storage temperature: -40-70℃
Storage humidity: 5%-90%RH (non-condensing)
