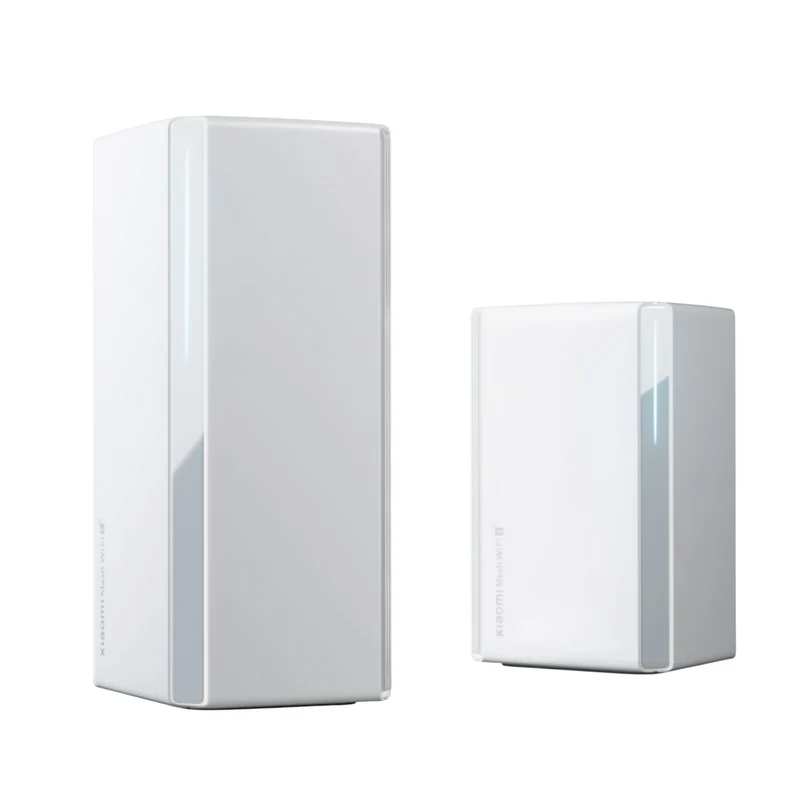

Xiaomi Whole Home Router (1 main unit and 1 sub-unit)

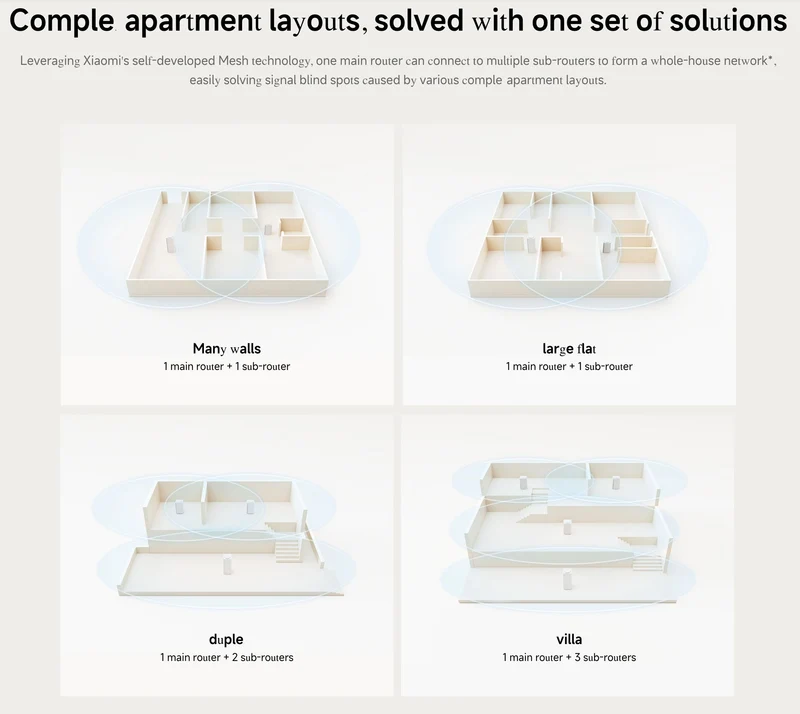

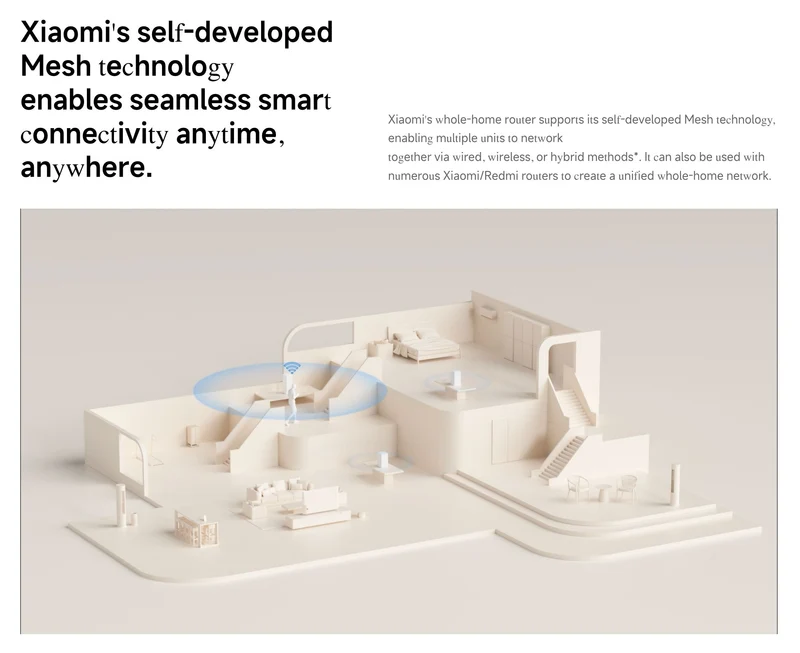

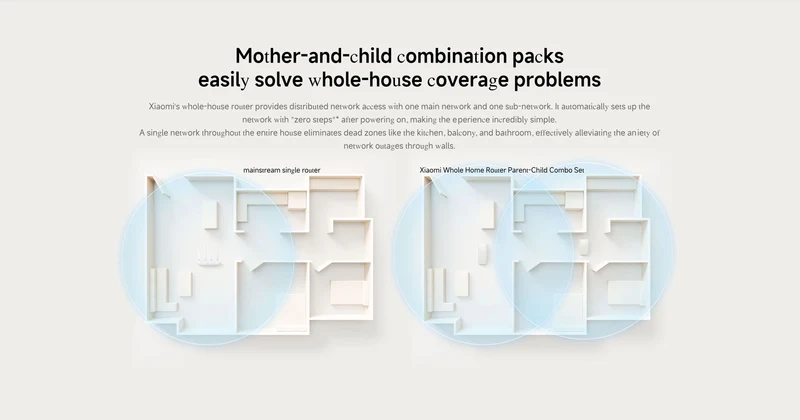

Xiaomi Whole Home Router delivers seamless Wi-Fi coverage across your entire home with dual-unit mesh technology. The main router and sub-router each feature Qualcomm dual-core 1.0GHz processors and 256MB memory, supporting next-generation Wi-Fi 6 (802.11ax) standards. Experience blazing-fast speeds with dual-band connectivity: up to 574Mbps on 2.4GHz and 2402Mbps on 5GHz. Both units include 4 built-in antennas and 2x2 160MHz support for stable, high-performance wireless performance throughout your space. Key features include Bluetooth Mesh Gateway support on both units, NFC Touch Connect on the main router, and intelligent WPA3-SAE encryption for enhanced security. The main router offers 4 Gigabit WAN/LAN ports, while the sub-router includes 1 Gigabit port for flexible network configuration. Compact white design (main: 213.5mm × 89.5mm × 89.5mm; sub: 153.7mm × 89.5mm × 89.5mm) fits seamlessly into any room. Manage your network effortlessly via the Web interface or Mi Home App on Android and iOS. Natural heat dissipation ensures reliable operation in temperatures from 0 40°C. Includes instruction manual, network cable, and 2 power adapters.

Specifications:

Physical & Design Specs

• Dimensions (L × W × H): * Mother Router: 89.5mm × 89.5mm × 213.5mm

  • Sub-Router: 89.5mm × 89.5mm × 153.7mm

• Color: White

• Heat Dissipation: Natural heat dissipation

Hardware Configuration

• Processor: * Mother: Qualcomm dual-core 1.0GHz CPU

  • Sub: Qualcomm dual-core 1.0GHz CPU

• Memory: 256MB (Mother) / 256MB (Sub)

• Antennas: 4 built-in antennas per unit (Mother & Sub)

• Smart Features:

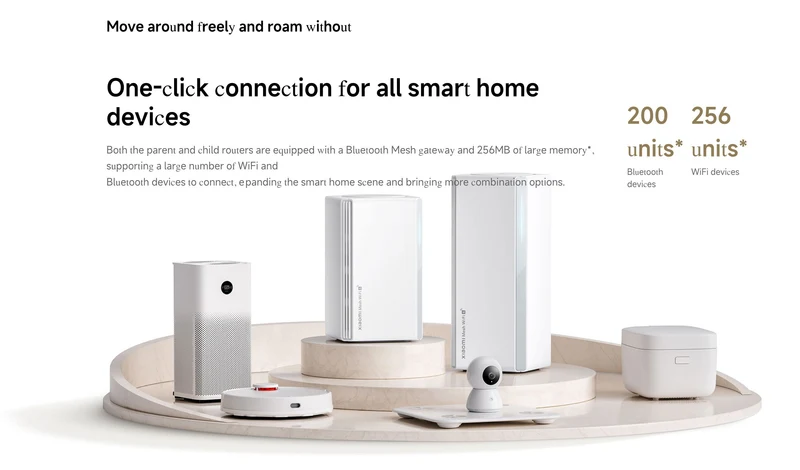

  • Bluetooth Mesh Gateway: Supported on both Mother and Sub-router.

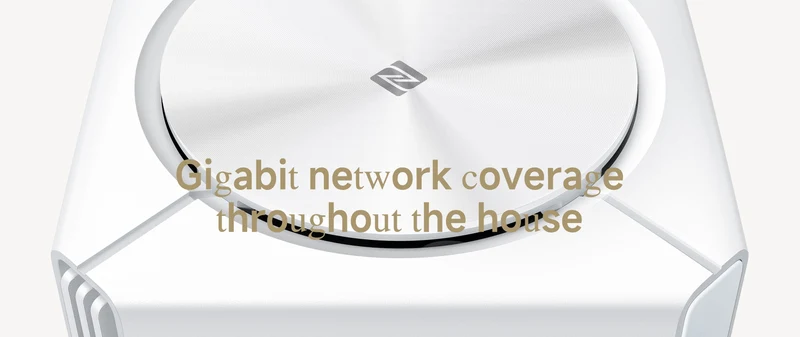

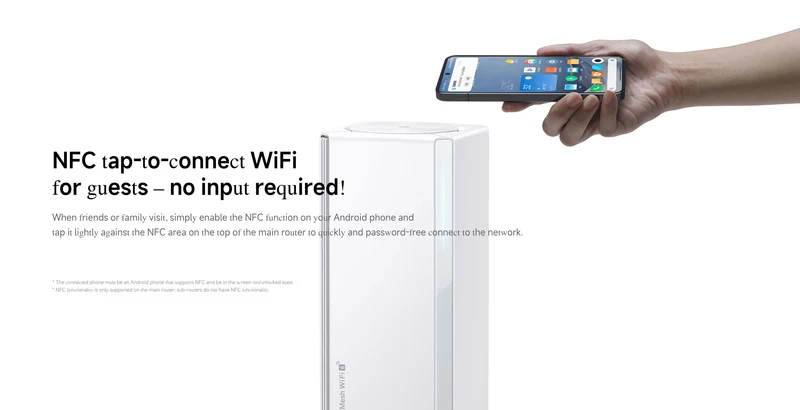

  • NFC Touch Connect: Supported on the Mother router only (Not supported on Sub-router).

Wireless & Speed Performance

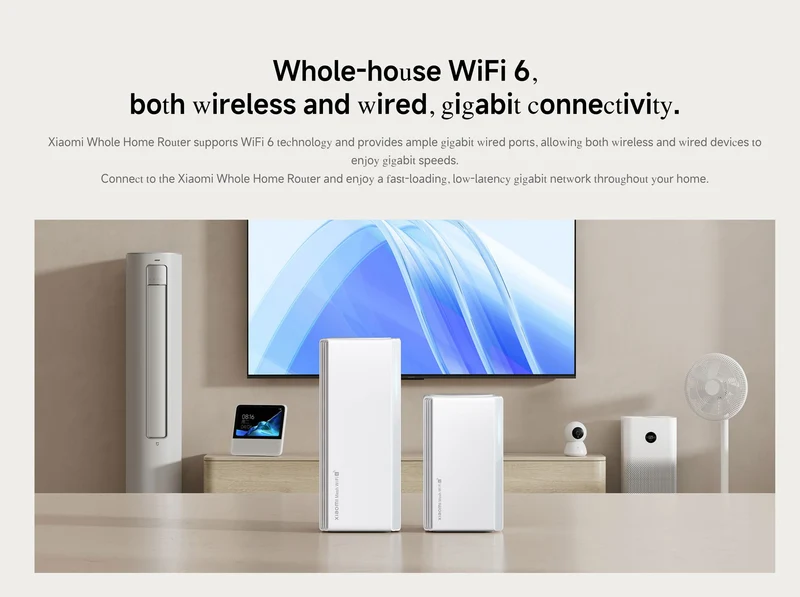

The system features Dual-band Wi-Fi (2.4GHz + 5GHz) operating on the Wi-Fi 6 (802.11ax) protocol:

Band	Configuration	Max Theoretical Speed	Supported Channels
2.4GHz	2x2 MIMO	Up to 574Mbps	1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
5GHz	2x2 MIMO @ 160MHz	Up to 2402Mbps	36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165

Protocol & Modulation Standards

• Supported Protocols: IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab

• Advanced Modulation: Supports up to 1024QAM on 11ax (Wi-Fi 6) for faster data transmission rates.

Ports & Interfaces

Mother Router

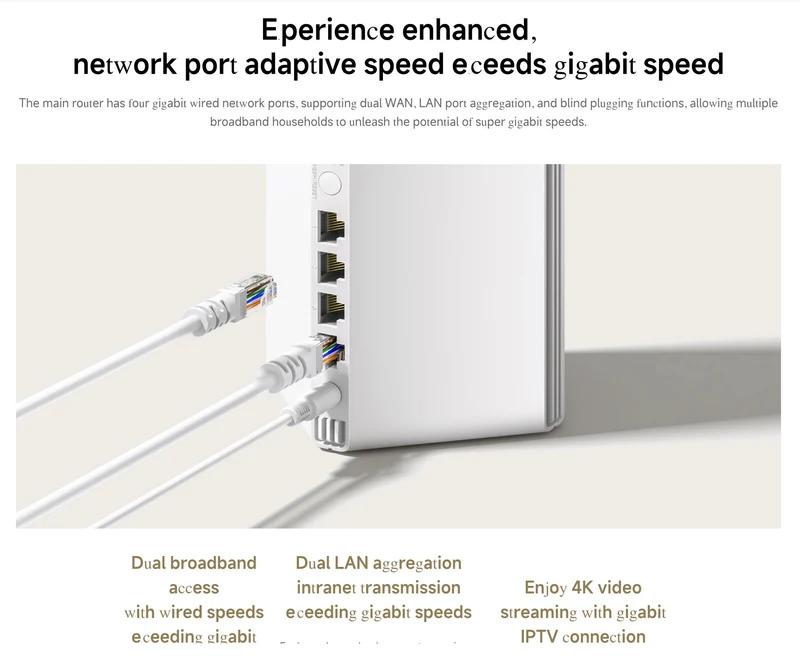

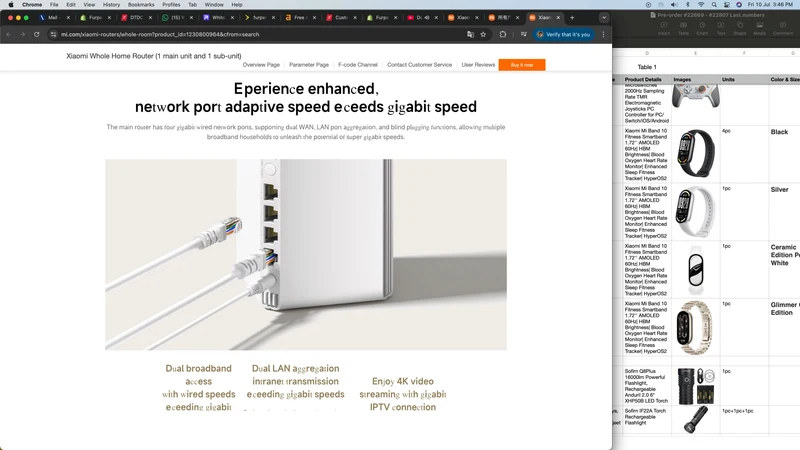

• 4 × 10/100/1000M adaptive WAN/LAN ports (Auto MDI/MDIX)

• 1 × LED Indicator
